LRI External Bolt Release for M700

  • $ 16500

It's one of the most popular receiver upgrades available for the M700: The side bolt release.

The LRI release is 100% machined from bar stock 4140 Chromoly steel.  We choose this material because it perfectly balances hardness and durability.  These parts are not as simple as one might initially be lead to believe.  Impact forces applied to the bolt stop's lug surface must be considered, as the energy has to be channeled to the receiver as directly as possible.

Our bolt stops are wider than most.  This offers a broader impact surface to the bolt lug.  Doing so reduces the risk of the bolt's lug becoming peened and damaged during its service life of hundreds of thousands of rounds.  For this reason, our bolt stops cannot be installed at the popular canted angle that elevates it above the stock line.  The decision boiled down to two choices; convenience of installation or reliability.

The balance of hardness and toughness of the bolt stop has to be measured against the hardness of the bolt's lug surface.  Too soft, and the bolt stop begins to deform.  Too hard, and we risk damage to the bolt or the bolt stop failing due to fatigue.

Next, the small retention pin of any bolt stop is the worse possible component to transfer the impact energy.  The small pin means it will fail violently in a short amount of time.  The challenge then becomes how to transmit energy through the bolt stop directly to the receiver with very little collateral abuse to the pin.


Instead of a round hole in the part, we turned it into an ellipse.  Our bolt stop is built to float forward and aft by a small amount.  Doing so means the impact from the bolt head is transmitted directly to the receiver.  The pin has one job;  to keep the part from falling out of the receiver.

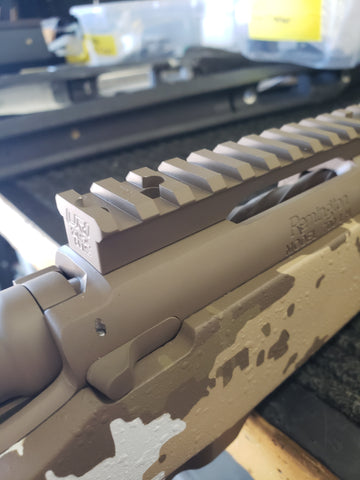

To finish the part, we contour the outside to match the radius of the action.  When properly installed, it finishes with a clean and professional installation.

The external bolt stop is nothing new.  They've been around for years as a popular upgrade.  Many smiths have taken to the idea that using an altered set screw instead of a pin is a way to offer a cleaner presentation.  Doing so certainly does allow the hole feature to be "blind,"-meaning that you cannot see it from the top side of the action when the rifle is fully assembled.

We agree that this does offer a more visual appeal. However, it carries with it some additional risk.  If the pin was ever broken, there is a strong likelihood that it will become stuck in the hole.  Your gunsmith will now have a nightmare to contend with because there is no way to access it from the other side.

Drilling the hole through both sides allows for much easier removal, and it is why we encourage the installation with a through hole.  While we've never experienced a failure to date, the thought of having to remove a broken and seized .0625" heat-treated pin from an expensive action is a job no machinist or gunsmith relishes in taking on.

NEW FOR 2023:

4" magazine box conversions for LA M700s.   The extended box magazine requires the bolt's extraction distance to be increased.  Our new bolt releases provide for this while fitting inside the standard LRI inlet pocket on the receiver.  Changing your LA M700 to allow this is now just a matter of increasing the box length of the magazine well.

Our installation service is listed here:



For clients and shops doing their own work, we offer prints to make installation straightforward.


External bolt release print 1 of 2 (PDF)

External bolt release print 2 of 2 (PDF)
